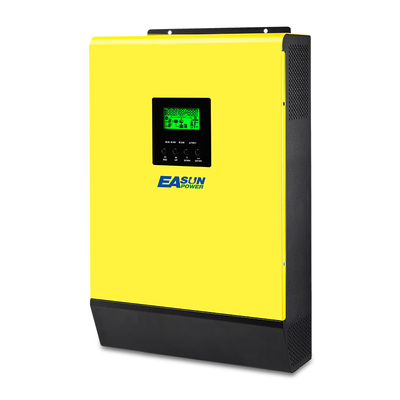

Name: Hybrid Solar Inverter Pure Sine Wave DC 450Vdc Hybrid Inverter 24V to 48Vdc 5Kva 4000W 230Vac MPPT Solar Power Inverter System
Brand: Hybrid Solar Inverter Pure Sine Wave DC 450Vdc Hybrid Inverter 24V to 48Vdc 5Kva 4000W 230Vac MPPT Solar Power Inverter System
SKU: IGrid SV II 5KW
Price: 620.00 USD
Availability: InStock
Rating: 4.7 (146 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Network: No

Customized support: Logo

Model Number: IGrid SV II 5KW

Type: DC/AC Inverters

Output Type: Single, Three phase

Output Current: 13A

Output Frequency: 50 Hz/60 Hz

Size: 120*295*468mm

Weight: 12KG

Certificate: CE

Product name: MPPT Solar Charger

Feature: Hybrid solar inverter

Rated Power: 5000W

Nominal Output Current: 13A

Maximum AC Input Current: 60A

Nominal DC Voltage: 48VDC

Maximum Solar Charge: 80A

Communication Ports: USB, RS-232 and dry contact

Informazioni di base

Certificazione: CE

Model Number: IGrid SV II 5KW

Termini di pagamento e spedizione

Packaging Details: 1pc/carton, 400pcs for 20ft container or according to clients' needs.

Supply Ability: 2000 Piece/Pieces per Month

Descrizione di prodotto

Product Description

WARNING:
1. Because this inverter is non isolated, only three types of PV modules are acceptable: single crystalline, poly crystalline with class A rated and CIGS modules.
To avoid any malfunction, do not connect any PV modules with possible current leakage to the inverter. For
example, grounded PV modules will cause current leakage to the inverter. When using CIGS modules, please be sure NO grounding.

2.Before connecting to AC in put power source , please install a separate AC breaker between
inverter and AC input power source . This will ensure the inverter can be securely disconnected during
maintenance and fully protected from over current of AC input. The recommended spec of AC b reaker is 16A for 1.5KW and 32A for 3KW and 5 0A for 5KW
There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis connect input and output connectors.

Main Features

Pure sine wave max 5000w output
Max 80A MPPT solar charger
Max 450Vdc input
HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system
Parallel support up to 9 units
Batteryless operation
Total system max charging: 80A
Bundled monitoring & setting software
Supports 50hz or 60hz (program adjustable)
Grid feedback when there is excess energy
USB interface available
Able to use ac grid or generator power
Timer setting for AC charging & output now available

Specification

MODEL	IGrid SV II 5KW
Max. PV Array Power	5000W
Rated Output Power	5000W
Maximum PV Array Open Circuit Voltage	450 VDC
MPPT Range @ Operating Voltage	120 VDC ~ 430 VDC
MPP Tracker Number	1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current	21.7A
Power Factor	> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	95%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range	90 - 280 VAC or 170 - 280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Maximum AC Input Current	40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	93%
BATTERY & CHARGER
Nominal DC Voltage	48 VDC
Maximum Solar Charge Current	80 A
Maximum AC Charge Current	80 A
Maximum Charge Current	80 A
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	120 x 295 x 468
Net Weight (kgs)	12
INTERFACE
Parallel Function	Yes, 9 units (Parallel kits are not included)
Communication Ports	USB, RS-232 and dry contact
ENVIRONMENT
Humidity	0 ~ 90% RH (Non-condensing)
Operating Temperature	0 to 50°C

Product Details

Product Catrgories

Company Information

Easun Power Technology Corp Limited is located in Shenzhen China.
We are professional and vigorous new energy company .
We commits to offer high quality products, has a team of professional and experienced specialists in the field of inverter charger. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.We commits to build mutual trust and make common progresses with our customers from all over the world.
We offers a full range of Solar product including :
Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator/Solar Accessories, etc
All consider with customers target price and MOQ, ship with their specified quality, to solve customer purchase problem, we are all online 24 hours for all customers.

Packaging & Shipping

Hybrid Solar Inverter Pure Sine Wave DC 450Vdc Hybrid Inverter 24V to 48Vdc 5Kva 4000W 230Vac MPPT Solar Power Inverter System

MODEL

IGrid SV II 5KW

Max. PV Array Power

5000W

Rated Output Power

5000W

Maximum PV Array Open Circuit Voltage

450 VDC

MPPT Range @ Operating Voltage

120 VDC ~ 430 VDC

MPP Tracker Number

1

GRID-TIE OPERATION

GRID OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Voltage Range

184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)

Nominal Output Current

21.7A

Power Factor

> 0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

95%

OFF-GRID, HYBRID OPERATION

GRID INPUT

Acceptable Input Voltage Range

90 - 280 VAC or 170 - 280 VAC

Frequency Range

50 Hz/60 Hz (Auto sensing)

Maximum AC Input Current

40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

93%

BATTERY & CHARGER

Nominal DC Voltage

48 VDC

Maximum Solar Charge Current

80 A

Maximum AC Charge Current

80 A

Maximum Charge Current

80 A

GENERAL

PHYSICAL

Dimension, D x W x H (mm)

120 x 295 x 468

Net Weight (kgs)

12

INTERFACE

Parallel Function

Yes, 9 units (Parallel kits are not included)

Communication Ports

USB, RS-232 and dry contact

ENVIRONMENT

Humidity

0 ~ 90% RH (Non-condensing)

Operating Temperature

0 to 50°C
