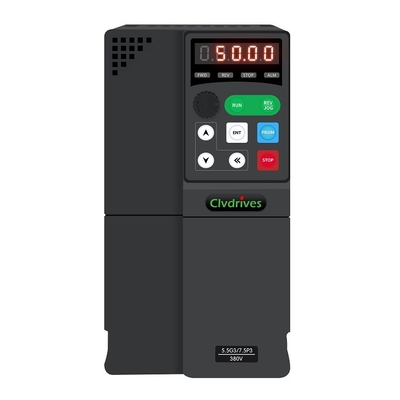

Hot sales low price 3 phase 380V 5.5KW HP7.5 Solar Pump Inverter for solar water pump system

1 Unit
MOQ
$104.00 - $115.00
prezzo
Hot sales low price 3 phase 380V 5.5KW HP7.5 Solar Pump Inverter for solar water pump system
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: PV500-0055G3
Warranty: 18 months
Type: DC/AC Inverters
Certificazione: CE, ,ISO9001
Size: 265*160*171.5
Customized: Yes
Control Mode: V/F, MPPT
Rated Power: 5.5KW
Nominal Voltage: 380V
power phase number: 3
Input voltage: 3 Phase 380V AC / 540V DC
Recommended MPPT Voltage Range: 450~600VDC
Output voltage: 3 Phase 0-380V AC
Application: Solar pump, Solar irrigation, Pool
Output Frequency: 0~500Hz
Ambient Temperature: -10°C to +40°C
Ingress Protection: IP20
Overload Capacity: 150%- 60s,180%- 3s
Lead time: 7 Days
OEM: SUPPORT
Informazioni di base
Certificazione: CE, ,ISO9001
Model Number: PV500-0055G3
Termini di pagamento e spedizione
Packaging Details: We have cartons and wooden boxes, which are pwcked in cartons below 75KW and wooden boxes above 93KW. Thichened shockproof foam is filled inside to prevent damage to equipment in transit.
Supply Ability: 3000 Unit/Units per Month
Descrizione di prodotto
Product Description





Rating Table

 CLV Drives Solar Pump Inverter Power Rating from 0.75KW to 630KW



 0.75KW to 37KW Power Rating Table (A00-A05)

Model No.

 Input Voltage Output Power Output Current(A) Dimensions Frame Size
KW HP L*W*H(mm)
PV500-0007G1

1 Phase AC
220V±10%, 50/60Hz

(320V DC Input)

  0.75 1  4  170*86*131.5 A00
PV500-0015G1  1.5 2  7  170*86*131.5 A00
PV500-0022G1 2.2 3  10 180*96*151 A01
PV500-0007G3

3 Phase AC
380V±10%, 50/60Hz

(540V DC Input)

  0.75 1  2.1 170*86*131.5  A00
PV500-0015G3 1.5  2  3.8 170*86*131.5  A00
PV500-0022G3 2.2  3  5 170*86*131.5  A00
PV500-0040G3  4  5  9 180*96*151 A01
PV500-0055G3  5.5  7.5  13 221.6*113*166.5 A02
PV500-0075G3  7.5  10  17 221.6*113*166.5 A02
PV500-0110G3  11  15  25 265*160*171.5 A03
PV500-0150G3  15  20  32 265*160*171.5 A03
PV500-0185G3  18.5  25  38 302.5*192*171.5 A04
PV500-0220G3  22  30  45 302.5*192*171.5 A04
PV500-0300G3  30  40  60 348.5*227*171.5 A05
PV500-0370G3  37  50  75 348.5*227*171.5 A05
Rated Specifications

 300V DC Input Inverter Specification

 PV Input  Maximum Input DC Voltage  400VDC
 Recommended MPPT Voltage Range  250~350VDC
 Recommended Input Operation Voltage  310VDC
 Grid or Backup   Generator input  Input Voltage  Single phase 220V(-15%~30%)
 Output Specification   Rated Output Voltage  3PH 220V
 Output frequency  0~500.00Hz(default: 0~50.00Hz)
 Protection  Built-in Protection  Lighting Protection, over-current, overvoltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump idling etc.





500V DC Input Inverter Specification

 PV Input  Maximum Input DC Voltage  800VDC
 Recommended MPPT Voltage Range  450~600VDC
 Recommended Input Operation Voltage  540VDC
 Grid or Backup   Generator input  Input Voltage  Three phase 380V(-15%~30%)
 Output Specification   Rated Output Voltage  3PH 380V
 Output Frequency  0~500.00Hz(default: 0~50.00Hz)
 Protection  Built-in Protection  Lighting Protection, over-current, overvoltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump idling etc.



 Environment Conditions



Installation Conditions  Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude

Below 1000m

If the altitudeis above 1000m, please derate 1% for every additional100m.
Ambient Temperature

 -10℃~+40℃. Derateing use once ambienttemperature exceeds 40℃.

 It is not recommended to use the inverter if ambient temperature is above 50℃.
Humidity  RH≤95%. No condensation is allowed.
Vibration  ≤ 5.8m/s2(0.6g)
Storage Temperature  -40°C~+70°C. The temperature changerate is less than 1°C/minute.
 Efficiency  Rated Power Run≥93%
 Installation  The inverter should be installed on an upright position to ensure sufficient cooling effect.
 Protection Grade  IP20
 Cooling  Forced Air Cooling





Detail Images



Application



Packaging & Shipping



We have cartons and wooden boxes, which are pwcked in cartons below 75KW and wooden boxes above 93KW. Thichened shockproof foam is filled inside to prevent damage to equipment in transit.





FAQ

Q 1: Are you trading company or manufacturer ?
A: We are factory.

Q 2: How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q 3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.

Q 4: What is your terms of payment ?
A:We accept T/T, L/C and CASH.

Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.

Q 6: Is there any discount ?
A. The discount will depend on the quanlity you purchase.

Q 7: What is your supply capacity?
A. The week output of the factory exceeds 500 PCS.

Q 8: Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty for all the goods from us.

Q 9: Could CLV Driver provide technical support?
A.We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
