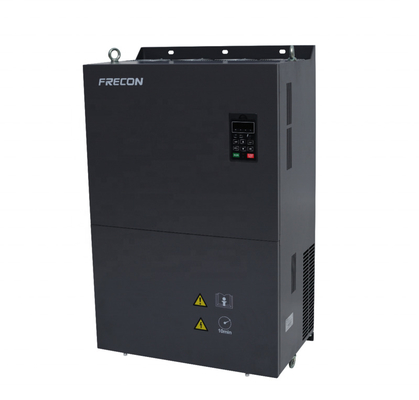

Agricultural irrigation 3 phase 90KW solar pump inverter with mppt function solar water pump system

1.0 piece
MOQ
Agricultural irrigation 3 phase 90KW solar pump inverter with mppt function solar water pump system
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Network: SDK
Customized support: Software reengineering
Model Number: PV500-4T-090-H
Type: DC/AC Inverters
Output Type: Triple
Output Current: 176A
Output Frequency: 50Hz/60Hz
Size: 310*620*262mm
Weight: 26KG
Certificate: CE
application: agricultural irrigation,water supply
warranty: 2 years
Altitude: below 1000m
Sample Order: paid samples
3 phase inverter: compatible with 3 phase induction motor
Environment temperature: -10℃~+50℃
MPPT( maximum power point tracking): yes for solar pump inverter hybrid
the main circuit: adopts intelligent module(IPM)
efficiency: rated power run >96%
Minimum waiting time: 5 minutes
Informazioni di base
Certificazione: CE
Model Number: PV500-4T-090-H
Termini di pagamento e spedizione
Packaging Details: Wooden boxes for inverter with 55 kw or above; Carton package for inverter with power lower than 55kw.
Supply Ability: 12000 Piece/Pieces per Month solar inverter
Descrizione di prodotto

Model Rated Output Current(A) Maximum DC Input Current(A) DC Input Voltage Range(V) Recommended Solar Power (KW) Recommended Solar Open Circuit Voltage(VOC) Pump Power(kW)
PV150I-2S:DC input 70-450V DC or AC input single phase 220V;Output single phase 220VAC
PV150A-2S-0.7B 7.5 10.6 70-450 1 360-430 0.75
PV150A-2S-1.5B 10.5 10.6 70-450 2 360-430 1.5
PV150A-2S-2.2B 17 21.1 70-450 2.9 360-430 2.2
PV150A-2S-4.0B 25 31.7 70-450 5.2 360-430 4
PV150A-2S-5.5B 32 42.2 70-450 7.2 360-430 5.5
PV150A-1S :DC input 70-450V or AC input single phase 110-220V;Output three phase 110VAC
PV150A-1S-1.5B 7.5 10.6 70-450 0.6 170-300 0.4
PV150A-1S-2.2B 9.5 10.6 70-450 1 170-300 0.75
PV150A-2S :DC input 70-450V or AC input single phase 220V ;Output three phase 220VAC
PV150A-2S-0.4B 2.5 10.6 70-450 0.6 360-430 0.4
PV150A-2S-0.7B 4.2 10.6 70-450 1 360-430 0.75
PV150A-2S-1.5B 7.5 10.6 70-450 2 360-430 1.5
PV150A-2S-2.2B 9.5 10.6 70-450 2.9 360-430 2.2
4T :DC input 230-800V or AC input three phase 380V ;Output three phase 380VAC
PV150A-4T-0.7B 2.5 10.6 230-800 1 600-750 0.75
PV150A-4T-1.5B 4.2 10.6 230-800 2 600-750 1.5
PV150A-4T-2.2B 5.5 10.6 230-800 2.9 600-750 2.2
4T :DC input 230-800V or AC input three phase 380V ;Output three phase 380VAC
PV500-4T-4.0B 9.5 10.6 230-800 5.2 600-750 4
PV500-4T-5.5B 13 21.1 230-800 7.2 600-750 5.5
PV500-4T-7.5B 17 21.1 230-800 9.8 600-750 7.5
PV500-4T-011B 25 31.7 230-800 14.3 600-750 11
PV500-4T-015B 32 42.2 230-800 19.5 600-750 15
PV500-4T-018B 37 52.8 230-800 24.1 600-750 18.5
PV500-4T-022B 45 63.4 230-800 28.6 600-750 22
PV500-4T-030B 60 95 230-800 39 600-750 30
PV500-4T-037 75 116.2 230-800 48.1 600-750 37
PV500-4T-045 91 137.2 230-800 58.5 600-750 45
PV500-4T-055 112 169 230-800 71.5 600-750 55
PV500-4T-075 150 232.3 230-800 97.5 600-750 75
PV500-4T-090 176 274.6 230-800 117 600-750 90
PV500-4T-110 210 337.9 230-800 143 600-750 110
PV500-4T-132 253 401.3 230-800 171.6 600-750 132
PV500-4T-160 304 485.8 230-800 208 600-750 160

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample to test with reasonable charges.We can send the sample to you by express like DHL or UPS,normally you can receive the sample in one week.

Q: What is your terms of payment ?

100% in advance . Welcome pay by Trade Assurance through Alibaba so your payment can get guarantee from ALibaba company. L/C and O/A would be possible for regular customers.

Q: What is your terms of packing?

A:Generally, We use carton box pack low rated power VFD, VFDs that are 55KW and above are packed by wooden box. reasonable special packing requirements from customers are acceptable for us.

Q. Do you test all your goods before delivery?

A: Yes, 100% test before delivery

Q: How long is your delivery time?

A: Generally it would be 5-10 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to quantity. we have much experiency supply goods to big customer,so don't worry about the delivery time.
