Caratteristiche

Specificazioni

Warranty: 1 Year

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Printing Shops, Construction worksÂ , Energy & Mining, Food & Beverage Shops, Other

Customized support: OEM, ODM

Gearing Arrangement: Planetary

Output Torque: 10~2200Nm

Input Speed: 3000~6000rpm

Output Speed: 3~2000rpm

Efficiency: 95%

Ratio: 3 ~ 100

Color: Black or Blue

Output Type: shaft or hollow

Packing: Carton or wooden case

Heat treatment: Yes

Lubricant: Synthetic

Customization: Support

Certificazione: ISO, CE

Informazioni di base

Certificazione: ISO, CE

Termini di pagamento e spedizione

Packaging Details: Carton or Wooden case

Supply Ability: 50000 Set/Sets per Month

Descrizione di prodotto

Product Overview

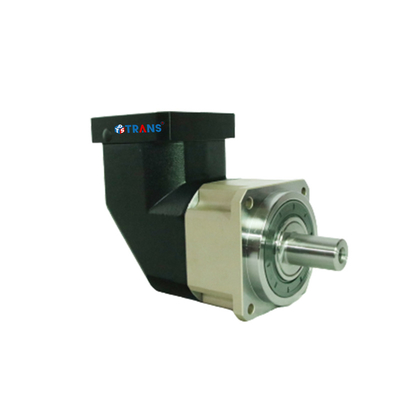

ABR Right Angle Planetary Gearbox

Description of ABR High Precision Planetary Gearboxes

TRANS ABR gearboxes are a kind of precision planetary reducer produced with a 90 degree angle to offer a solution to solve the space problem. The inner construction is designed with spiral bevel gears which feature better meshing performance, smooth transmission, and low noise. TRANS offers a broad range of planetary gearboxes for customers’ selection including inline gearboxes, right angle gearboxes, hollow shaft gearboxes, etc. TRANS is focused on researching and developing new products using high-quality ABRts, which ensures our gearboxes are produced with high performance and efficient, low noise, so that can help customers reduce the running cost and improve productivity. Usually, TRANS ABR planetary gearbox offers high efficiency of up to 97%, which is much higher than our competitor’s 80% efficiency. The ABR Series is a right angle planetary gearbox that is ideal for motion control applications wherein the power flow needs to be redirected. The input flange design is suitable for most of the stepper motors, servo motors, AC or DC motors. With the same cost of the gearbox, ours can offer higher torque and efficiency. Free maintenance thanks to good synthetic grease which is another outstanding feature of our ABR speed reducer.

Overview of ABR Technical Parameters 1)Gearbox outline dimension: 42,60,90, 115, 142, 180, 220 2)Reduction ratio: 3, 4, 5, 6, 7, 8, 9, 10, 14, 20 ( Single Stage ) 15, 20, 25, 30, 35, 40, 50, 70, 80, 100, 120, 140, 160, 180, 200 ( Two Stage ) 3) Lubrication: Lifetime lubrication with the use of fully synthetic grease 4) Rated Input speed: 3000— 8000rpm 5) Service Life: >20, 000 hours 6) Backlash: for P1 precision 1-Stage:≤ 5 arc min, 2-Stage: ≤ 8 arcmin for P2 precision 1-Stage:≤ 8 arc min, 2-Stage: ≤ 10 arcmin 7)Operating temperature: -15°C to +90°C 8)Protection Class: IP65 9)Noise Value: ≤65~75 DBA

FEATURES AT A GLANCE

● Low tooth backlash of the angle planetary gearbox.
● Angle planetary reducer is easy to install, and the elastic design of the connecting plate of the reducer and the size of the
input shaft hole enables our gearbox to be combined with all brand of servo motors.
● High-quality synthetic lubricants are used. Due to good fluidity and extreme pressure and pressure resistance, all parts in the
gearbox are fully lubricated and protected.
●High quality and non-deteriorating oil seal make sealing better. Roller cone bearings are used for maximum axial radial load.

PRODUCT SPECIFICATIONS

WHY CHOOSE US

1.BROAD RANGE OF SERVO REDUCERS FOR SELECTION.

2. ALTERNATIVES TO APEX GEARBOX, NEUGART GEARBOX, SHIMPO GEARBOX, WITTENSTAIN GEARBOX.

3. GOOD PRICE WITH HIGH QUALITY.

4. OEM AND ODM SERVICE ARE AVAILABLE.

5. 7~10 DAYS OF FAST DELIVERY TIME.

6. ALL-ROUND PROFESSIONAL TECHNICAL SUPPORT. FREE 2D AND 3D DRAWINGS AVAILABLE

7. A WIDE RANGE OF RATIOS, FRAME SIZES AND TYPES FOR YOUR CHOICE.

8. ONE YEAR GUARANTEE.

OUR FACTORY

SHIPPING & PACKAGING

FAQ

Q1：Are you manufacture and do you have quality assurance of the speed reducer?

A1：Yes, we are factory based sales company in China with more than 20 years’ experience.The MKD product positioning is a high-end quality of speed reducers. All of our gear reducers are tested before delivery and one year’s quality guaranteed with lifetime maintenance service as well as technical support.

Q1：How long is your delivery time?

A1：Normally, we have sufficient stock for standard backlash gear reducers especially for planetary gearboxes. If there’s no goods in stock for your required reducer, usually, it will take 15-20 days to produce. For some customized gearboxes, it will be a little longer lead time. Besides, we are customer oriented company. If you need the speed reducer urgently, we can arrange your orders production in front of others to save time and cost.

Q1：What is the payment method of your planetary reducer?

A1：T/T. 30% of total amount to be paid as deposit, and the balance 70% to be paid before shipment. You can pay to our boss’s individual account or company’s account. And you also can pay through Alipay or paypal. If the amount of gear reducer is small, we suggest you pay 100% of total amount before placing the order so that time can be saved for delivery.

Q1：Do you have a discount for speed reducer?

A1：Yes, since we are manufacture and can give you a discount according to the quantity you will buy. Different quantity with different discount price. In a word, the more you buy from us, the bigger the discount will be. Welcome to consult us for details.
